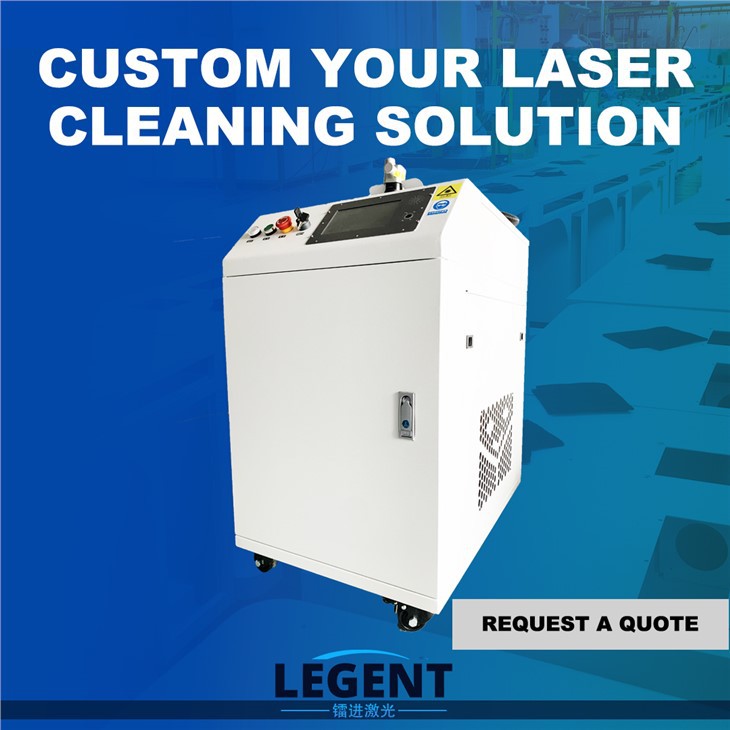

Pulse Laser Cleaning Machine 100w Laser Cleaner
The 100w pulse laser cleaner is mainly composed of a laser cleaning system control cabinet and a laser cleaning head. This equipment can clean stubborn dirt on metal surfaces or most other hard surfaces, and the cleaning effect is more delicate than continuous laser cleaning machines.
Description
Products Description
The 100w pulse laser cleaning machine is mainly composed of a laser cleaning system control cabinet and a laser cleaning head. This equipment can clean stubborn dirt on metal surfaces or most other hard surfaces, and the cleaning effect is more delicate than continuous laser cleaning machines.
This equipment is suitable for customers who have the following needs
1. All kinds of metal processing plants need to clean the metal surface
2. The auto parts factory cleans and descales the surface of the parts
3. Cultural relic restoration industry, cleaning the surface of bronze, stone carving and wood carving
4. Customers who are willing to engage in laser equipment trade and laser cleaning equipment leasing services
5. Teams who are willing or currently engaged in cleaning services can add useful tools to the business to improve service levels and efficiency.
Braking resistors are widely used in diesel locomotives, DC electric locomotives and subway vehicles. In the vehicle braking process, some vehicles, such as subway vehicles, its main circuit to provide the braking resistor current.
Braking resistors are widely used in diesel locomotives, DC electric locomotives and subway vehicles. In the vehicle braking process, some vehicles, such as subway vehicles, its main circuit to provide the braking resistor current.
Products parameters
| Pulse Laser Cleaning Machine 100w Laser Cleaner | |||
|
Model |
LG-FL-100A |
Laser wavelength |
1064nm |
|
Laser output power |
＞100W |
Laser configuration |
Raycus (optional) |
|
Galvo scanning speed |
＞20000mm/s |
Power adjustment range |
10-200W |
|
Repetition frequency range |
1-4000KHZ |
Pulse width range |
10-500ns |
|
Output fiber diameter |
3-8m (standard 5) |
||
|
Spot type |
Gaussian light |
input power |
110-220VAC 50/60HZ |
|
Single pulse capability |
1.8-10mJ |
output type |
QCS |
|
Spot diameter |
3-8mm |
Spot shape |
cycle |
|
Beam quality |
M²＜1.6 |
Pulse width adjustable number |
8-20 |
|
Operating temperature |
10-40℃ |
cooling method |
air cooling |
|
Machine power consumption |
＜1500W |
Total Weight |
＜100kg |
Product Picture
※ Oil stain
※ Rust
※ paint
※ Coating
Products Application case
Our factory
workshop
workshop
workshop
workshop
