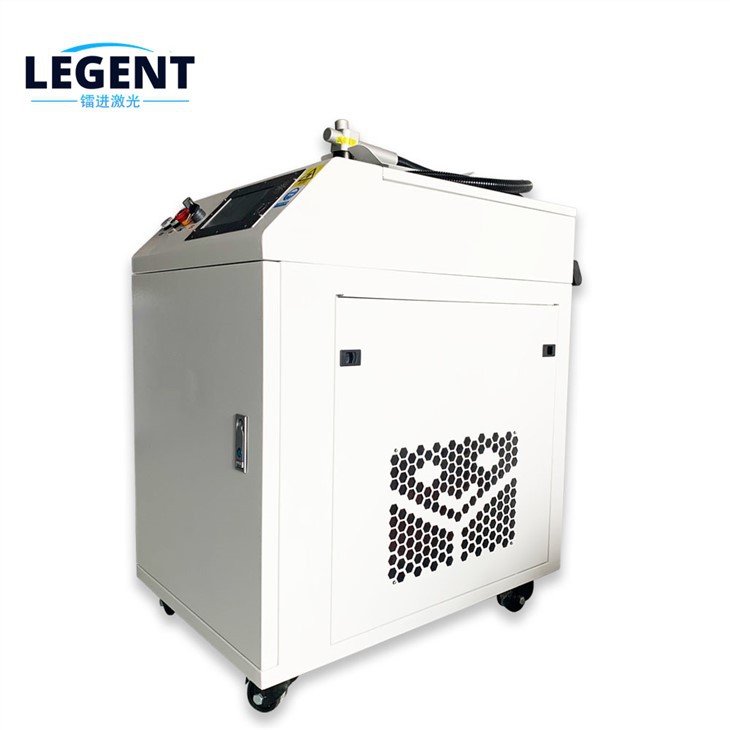

200w Pulsed Laser Cleaning Machine
The laser cleaning machine is equipped with a special control system for laser cleaning, which can control laser parameters and scanning system parameters at the same time, and is equipped with a handheld wireless control card.
Description

Intruduction
The 200w Pulsed Laser Cleaning Machine uses a laser to clean the stubborn dirt on the metal surface. The machine has a dedicated control system, which can control laser parameters and scanning system parameters at the same time. The machine is equipped with a handheld wireless control card, which can be wirelessly connected with the cleaning machine to realize remote control of parameters such as laser output power, frequency, and pulse width.
Feature
1. Small size and light weight, and the bottom has wheels, so it is easy to move;
2. The touch screen can adjust various parameters, and the operation is simple and convenient;
3. The spiral cleaning method is adopted to avoid the chromatic aberration on the surface of the parts;
4. The beam adopts Gaussian mode, which is suitable for rust removal, carbon steel removal, etc.
Product Parameter
| 200w Pulsed Laser Cleaning Machine | |||
Model | LG-FL-200A | Laser wavelength | 1064nm |
Laser output power | >200W | Laser configuration | Raycus (optional) |
Galvo scanning speed | >20000mm/s | Power adjustment range | 10-200W |
Repetition frequency range | 1-4000KHZ | Pulse width range | 10-500ns |
Output fiber diameter | 3-8m (standard 5) | ||
Spot type | Gaussian light | input power | 110-220VAC 50/60HZ |
Single pulse capability | 1.8-10mJ | output type | QCS |
Spot diameter | 3-8mm | Spot shape | cycle |
Beam quality | M²<1.6 | Pulse width adjustable number | 8-20 |
Operating temperature | 10-40℃ | cooling method | air cooling |
Machine power consumption | <1500W | Total Weight | <100kg |
The Application Industry
Our laser cleaning machines can be used to clean these objects
※ Oil stain
※ Rust
※ paint
※ Coating
※ Nuclear Pollution
※ Oxide film
※ Food residue
※ Carbon deposition
※ Particulates
