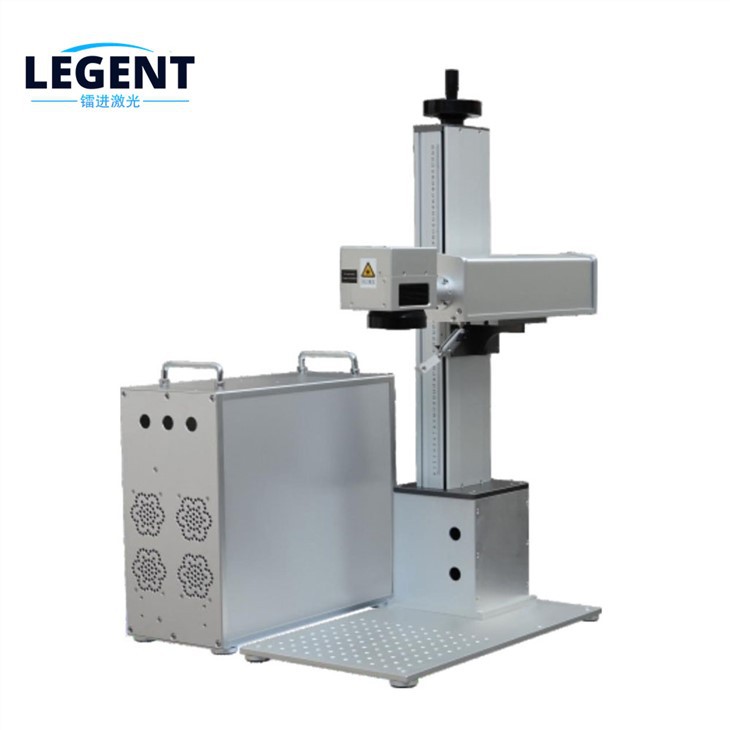

30W Handheld Fiber Laser Marking Machine With Raycus Laser Source For Metal

Features and Benefits:

Legent Handheld Laser Markers are designed to produce permanent and legible marks on a variety of metals and other materials.
1) The Legent FL laser marking machine is small in size, easy to carry and extremely flexible to operate, allowing you to easily move between different work areas.
2) No consumables, maintenance-free, low operating cost

3) High precision: repeatability is 0.002mm
High speed: high quality laser scanning system enables marking speed up to 7000mm/s
Mark almost any area with incredible speed and accuracy.
4) Using the original Raycus laser source, original control card and software, the laser beam is thin and thin to ensure accurate marking



Technical Parameters

Laser source:30w Raycus laser source

Max.output power:23W

Wavelength:1064nm

Cooling mode:Air cooling

Working area:100mm×100mm

Marking format:Graphics, text, number, date, bar codes, QR code etc.

Graphic format support:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT and etc.

Communication interface:USB

Focus assistance:Red light pointer

​

Application
1.Applied Materials:

Metals:gold, silver, brass, Aluminum, steel, stainless steel, iron, Lithium, carbon steel, mild steel, spring steel, copper, magnesium, zinc, galvanized sheet, rare metal and alloy steel, special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy) etc.

Nonmetals:rubber, resin, nylon, plastics(PET,HDPE,PP, ABS,PC,PPS,PVC) etc.



2.Applied Industries:

Electronic components:resistance, capacitance, chips, printed circuit boards, computer keyboard etc.

Apparatus and meter:panel board, nameplates, panel signs, precision equipment etc.

Hardware tools:knives, tools, measuring tools, cutting tools etc.

Mechanical parts:pistons, bearings, gears, shafts, clutch, standard parts, motors, etc.

Daily necessities:cosmetics, labels, handicrafts, zipper, key holder, sanitary ware, eyewear, LED light etc.

Digital electronic:computer, laptop, digital camera, mobile phone and accessories etc.

Jewelry:rings, necklace, earrings, gold, silver etc.

Medical:medical device, surgical instruments, medical packaging etc.

Packing:dishware ,food, beverages, smoking and alcohol, plastic packing bag etc.



We provide our customers with...
Factory and Field Operator Training
Advanced Customer Training
Designated Customer Service Engineer
best system configuration
Inbound Customer Support
Advanced Application Support
System upgrade notification
Remote diagnostic capability
Direct technical support
Engineer login for testing/troubleshooting
