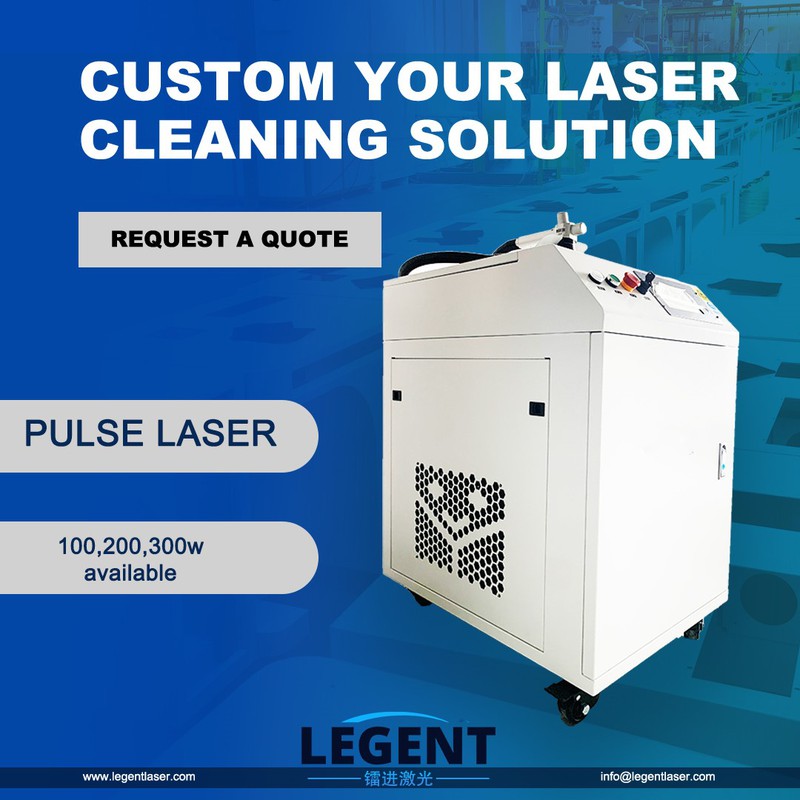

Oxide Painting Coating Removal 100w Laser Cleaning Machine

Oxide painting coating removal 100w laser cleaning machine is an environmentally friendly cleaning method. It can partially replace traditional surface treatment methods such as sandblasting, shot peening, chemical rust removal, chemical degreasing, and chemical paint stripping.

Send Inquiry

Description

The Oxide Painting Coating Removal 100w Laser Cleaning Machine uses laser cleaning, which is a very environmentally friendly cleaning method: it does not require the assistance of chemical cleaning agents, so it does not cause environmental pollution. It is mainly used to remove solid dirt on the workpiece that is difficult to remove with water or detergents, such as rust, paint, oxides, coatings, etc. Laser cleaning produces very little waste, basically solid powder, which can be recycled, so it will not cause environmental pollution like chemical cleaning.

Product Parameter (Machine Specification)

Oxide Painting Coating Removal 100w Laser Cleaning Machine
Model	LG-FL-1000A	Laser Wavelength	1064nm
Laser Power	≥1000W	Laser configuration	Raycus (optional)
Galvo scanning speed	＞20000mm/s	Power adjustment range	10-100W
Laser frequency	≤50KHZ	Input Power	110-220VAC 50/60HZ
Output core diameter	30-100um	Output type	QBH
Cable Length	5, 10, 12, 15 (optional)	Cooling Method	Water Cooling
Beam quality	M²≤2	Power Consumption	＜4.5KW
Working Temperature	10-40℃	Machine Weight	＜180kg
Optional accessory	Hand-held/Automated	Chiller water flow requirements	＞10L/min

Product Feature and Application

(1) Laser cleaning is non-abrasive and non-contact, which changes the traditional contact cleaning method, has no mechanical force on the surface of the cleaned object, does not damage the surface of the object, does not generate heat, and has no secondary pollution;

(2) The laser can be transmitted through the optical fiber, which is easy to operate, and can also cooperate with the robot and the robot to easily realize long-distance operation, and can clean the parts that are difficult to reach by traditional methods. This can be used in some dangerous places to ensure personnel and workpieces. safety;

(3) Laser cleaning can remove various types of pollutants (such as oil, rust, paint, etc.) on the surface of various materials, and achieve cleanliness that cannot be achieved by traditional cleaning;

(4) The laser cleaning efficiency is high, the quality is good, and the time is saved;

(5) The laser cleaning system can be used stably for a long time, and the operating cost is low. The operating cost per hour is only about 1 yuan, which can easily realize automatic operation.

Oxide Painting Coating Removal 100w Laser Cleaning Machine
