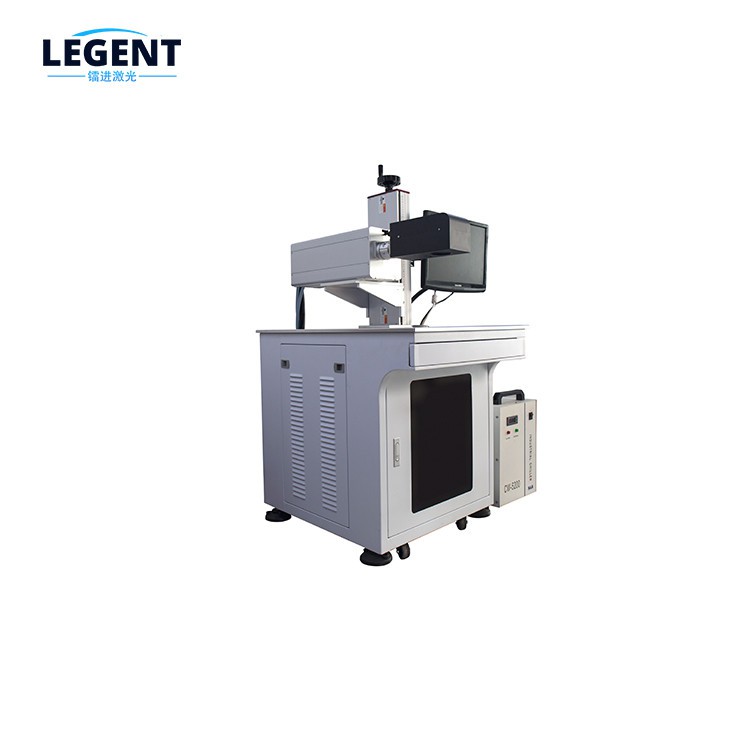

UV Laser Marking Machine for Packaging
Compared with infrared laser, this UV laser marking machine adopts high-quality violet laser light source, 355nm UV laser has extremely small laser spot, which significantly reduces mechanical deformation and reduces the influence of heat treatment to a very limited area.
Description
Products Description
Compared with infrared laser, this UV laser marking machine adopts high-quality violet laser light source, 355nm UV laser has extremely small laser spot, which significantly reduces mechanical deformation and reduces the influence of heat treatment to a very limited area. Therefore, it is mainly used for ultra-fine marking and engraving, and is especially suitable for precision marking on the surface of packaging bottles (boxes) of polymer materials such as food, medicine, cosmetics, and wires.
Products Features
1. Stable water cooling, high-precision temperature control, suitable for high-precision scribing and marking of various complex patterns, fast speed and good overall machine stability.
2. Small heat-affected area, suitable for ultra-fine marking and engraving
3. High-quality permanent markers
4. Environmental protection and safety machinery
5. High photoelectric conversion efficiency, narrow laser pulse width, high peak power and long service life
Products parameters
3W UV laser marking machine | Laser wavelength | 355nm | |
Product model | LG-UV-3A | Fiber laser source brand | Imported or domestic |
Laser power | ＞3W | Standard marking area | 110mm-300mm (optional) |
Marking speed | ＜14000mm/s (customized) | Software support system | XP/WIN7/WIN8/WIN10 |
Marking depth | ≤0.5mm (depend on material) | Power requirement | ＜1200W |
Beam diameter | 0.8±0.2mm | Beam quality | M²＜1.2 |
Minimum line width | ≤0.005mm | Minimum character | 0.03mm |
Repeated precision | 0.01mm | Response time | 0.2ms |
Output frequency | 10-200KHZ | Voltage | 110v-220v/50HZ/60HZ single phase |
Cooling mode | Built-in air cooling or water cooling | Net weight | <80kg (cabinet type) |
Temperature of operation | 5℃-40℃ | Marking controller | Computer or 7-inch screen (flying) |
Cabinet Size | Cabinet type: length 800mm width 600mm height 780mm (standard), aluminum plate plane: 350mm*270mm (can be customized) | ||
Warranty | 24 months under normal operation | ||
Services | Offer free sample testing, machine operating manual, videos, on-line tech support, free of charge of LOGO convert to PLT format. | ||
Products applications
