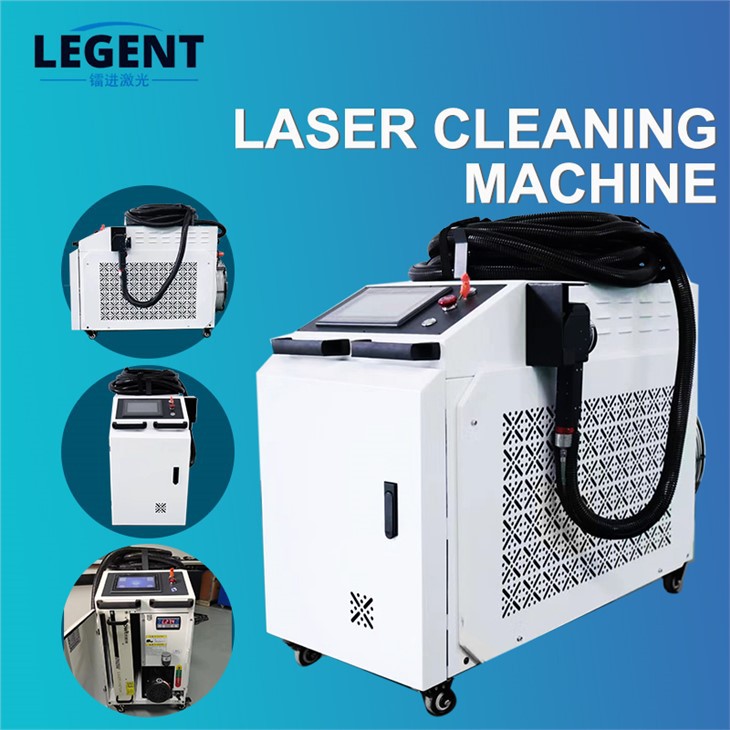

Industrial Laser Metal Surface Cleaning Machine

For industrial fields, Industrial Laser Metal Surface Cleaning Machine are basically concentrated in the mid-end market such as molds and metal materials.

A "green" cleaning method and can easily solve the environmental issues.

Laser cleaning machine use a "green" cleaning method that does not need to use any chemicals or cleaning fluids, and can easily solve the environmental issues caused by chemical cleaning. The wastes that are cleaned are basically solid powders, small in size, easy to store and recycle.

Non-contact cleaning, and will not damage the substrate of the workpiece.

Laser cleaning is a non-destructive cleaning method that does not damage the substrate. The laser beam has the characteristics of large energy density, controllable direction and strong convergence ability, so that the bonding force between the pollutant and the substrate is destroyed or the pollutant is directly removed. Gasification and other methods are used to decontaminate, reduce the bonding strength of pollutants and the substrate, and then achieve the effect of cleaning the surface of the workpiece.



Device model LG-FLC-3000C
Laser power 3000W
Laser wavelength 1064nm
Pulse energy 1-1.5mJ
Cleaning focal length F=500mm
Cleaning head weight 2.5±0.1kg
Touch screen 7 inches
Optical fiber cable length 15m
Scan length 100-170mm (can be customized)
Scanning width 1-20mm (can be customized)
Working temperature 0℃-45℃
Storage temperature ﹣10 to ﹢60℃
Working humidity 10%-80%
Cooling method Water cooling
Machine power 9000w
Input power three-phase 380VAC±10%, 50-60Hz
Machine weight 286KG±10KG
Chassis size 1116cm*644cm*1235cm

For the specific performance of industrial metal surface laser cleaning machines, if you are interested in this, you can contact Legent Expert and send you relevant documents and videos.
We also welcome customers in need to send us items that need to be cleaned for testing. Pre-purchase testing can further clarify the effects and benefits our equipment can bring to you.

Laser cleaning technology has spread to many industries in industrial applications
Microelectronics field: semiconductor components, microelectronic devices, memory templates, etc.;
Protection of cultural relics: stone carvings, bronzes, glass, oil paintings and murals, etc.;
Abrasive cleaning: rubber molds, compound molds, metal molds, etc.;
Surface treatment: hydrophilic treatment, surface roughening, treatment of welds before and after welding, etc.;
Paint removal and rust removal: aircraft, ships, weapons and equipment, bridges, metal pressure vessels, metal pipes, etc.; aircraft parts, electrical product parts, etc.;
Others: urban graffiti, printing cylinders, building exterior walls, nuclear industry, etc.
