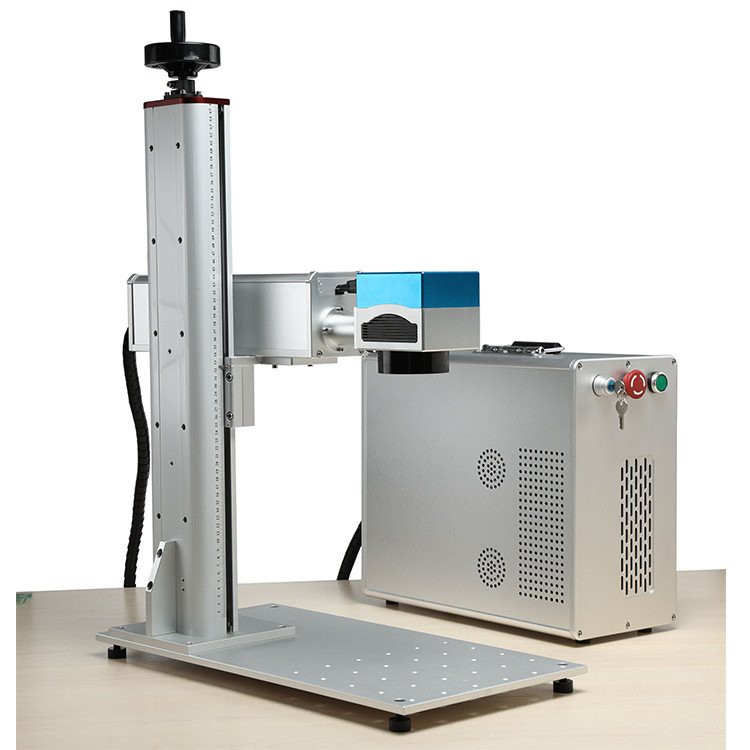

Desktop 20w Fiber Laser Marking Machine
The desktop portable fiber laser marking machine is the third-generation laser marking machine system developed by our company using the most advanced laser technology in the world today.
Description
Products Description
The desktop portable fiber laser marking machine uses a fiber laser to output laser light, and then uses an ultra-high-speed scanning galvanometer system to achieve the marking function.
Parameter
Model | LG-FL-20A | LG-FL-30A | LG-FL-50A |
Laser Power | 20W | 30W | 50W |
Laser Wavelength | 1064nm | 1064nm | 1064nm |
Beam Quality | M2<1.6 | M2<1.6 | M2<1.6 |
Repetition Frequency | 20-80KHz | 30-80KHz | 30-80KHz |
Marking Field | 110mmx110mm | 110mmx110mm | 110mmx110mm |
Marking Depth | ≤1.2mm | ≤1.2mm | ≤1.2mm |
Marking Line Speed | ≤14000mm/s | ≤14000mm/s | ≤14000mm/s |
Minimum Line Width | 10um | 10um | 10um |
Minimum Character | 0.15mm | 0.15mm | 0.15mm |
Repetition Precision | ±0.005mm | ±0.005mm | ±0.005mm |
Power Consumption | ≤550w | ≤600w | ≤650w |
Maintenance-free Time | 100000hours | 100000hours | 100000hours |
Input Power | Single Phase110VAC/220VAC/50-60Hz | ||
Cooling Method | Air Cooling | Air Cooling | Air Cooling |
Please note: in addition to 20W, 30W, 50W machines are also available. | |||
Product Details
Application
It can engrave metal materials and some non-metal materials, mainly used in fields with high requirements on depth, smoothness and fineness, such as mobile phone stainless steel trim, clocks, molds, IC, mobile phone buttons and other industries, bitmap marking, Beautiful pictures can be marked on metal, plastic and other surfaces.
Upgrade Solution
